APLW 215

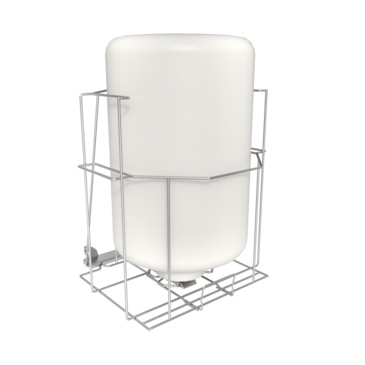

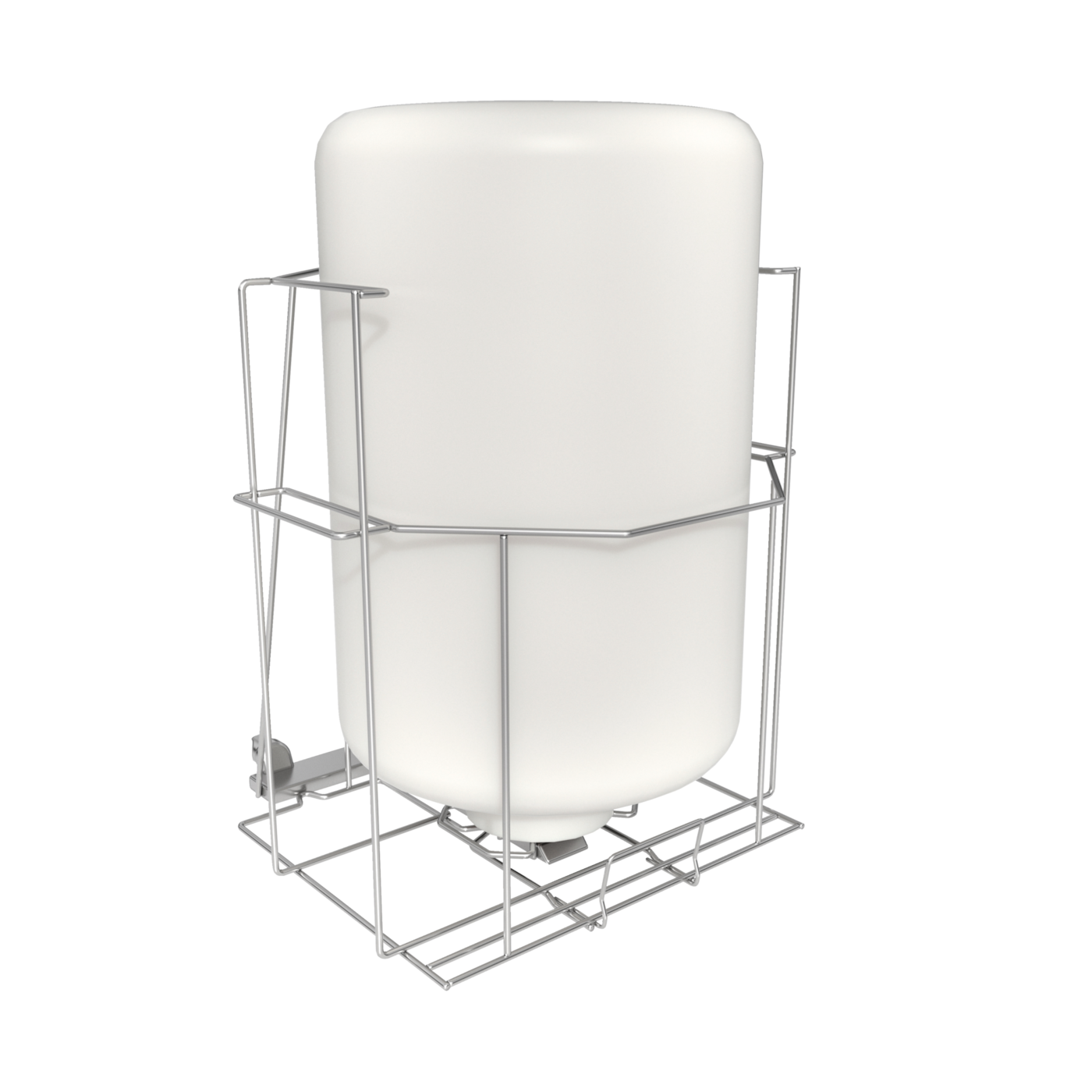

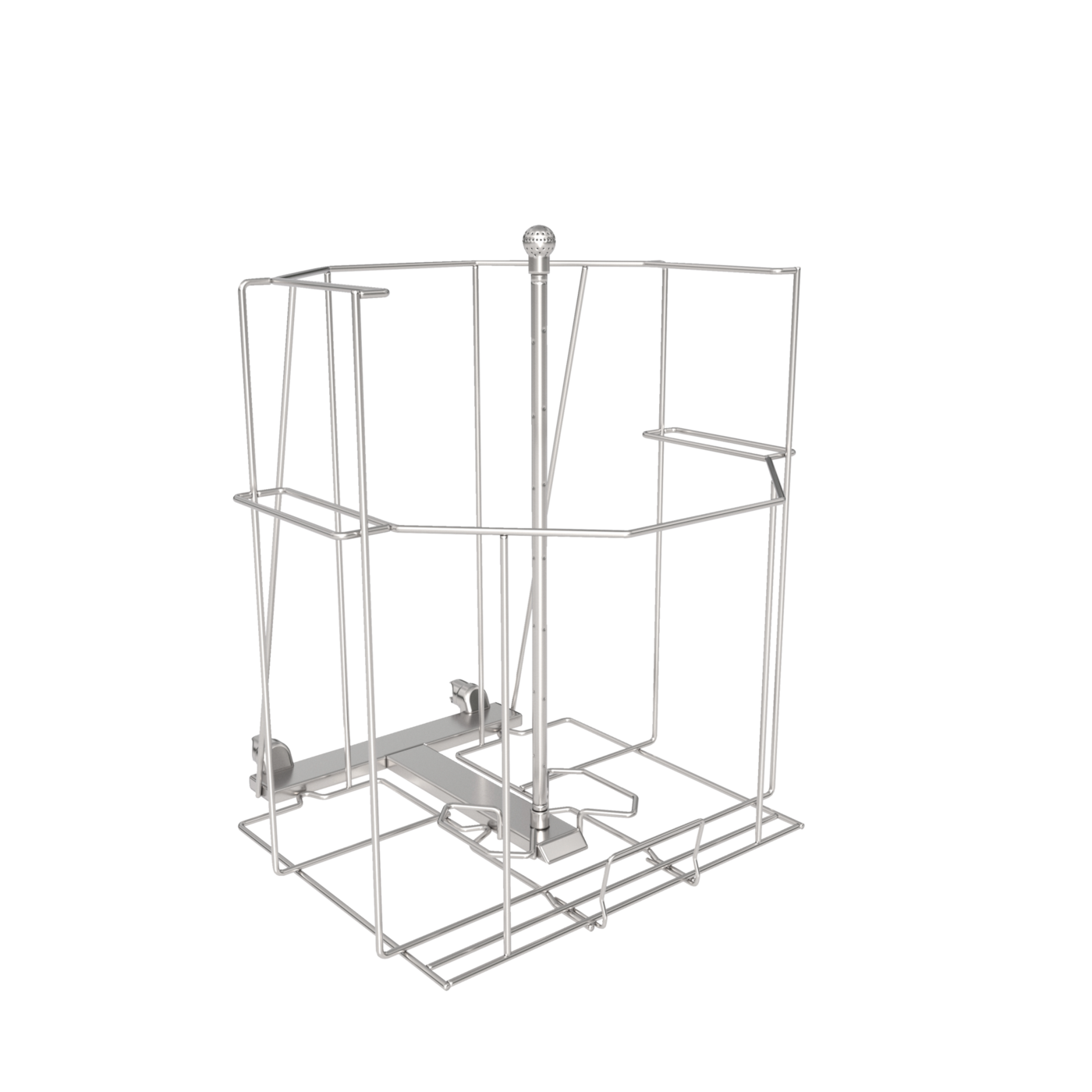

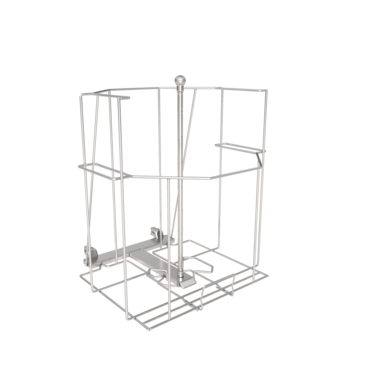

Injector module for the optimum loading of large-volume plastic bottles up to 50 L.
- For use on level 1
- Equipped with a special injector nozzle
- Equipped with a holding frame
- Max. bottle diameter: 14 15/16" (380 mm)
- Bottle height: 22 1/16" to 24 7/16" (560 to 620 mm)
- Bottle neck diameter: min. 1 1/4" (30 mm) internal, max. 3 1/8" (80 mm) external
Article color
Product details
APLW 215
EAN 4002516525981 / Article number 69621500D / Material number 11853940
| Large-capacity washer-disinfectors, laboratory |
- Large-capacity washer-disinfectors, laboratory
| PLW 7111 |
- PLW 7111
| Other inserts/other modules | |
| Module for large-volume laboratory glassware |
- Other inserts/other modules
- Module for large-volume laboratory glassware
| Reprocessing of laboratory glassware |
- Reprocessing of laboratory glassware
| Material | Stainless steel Plastic |
| Color | Stainless Steel |
- Material
- Stainless steelPlastic
- Color
- Stainless Steel
| Large-volume laboratory glassware [number] | 1 |
- Large-volume laboratory glassware [number]
- 1
| External dimensions, net height in inches | 22 1/4 (565) |
| External dimensions, net width in inches | 18 1/2 (469) |
| External dimensions, net depth in inches | 20 3/4 (526) |
| External dimensions, gross height in inchesi | 23 1/4 (590) |
| External dimensions, gross width in inchesi | 20 1/2 (520) |
| External dimensions, gross depth in inchesi | 20 7/8 (530) |
| Net weight in lbs | 8 (3.84) |
| Gross weight in lbsi | 11 (5.14) |
- External dimensions, net height in inches
- 22 1/4 (565)
- External dimensions, net width in inches
- 18 1/2 (469)
- External dimensions, net depth in inches
- 20 3/4 (526)
- External dimensions, gross height in inchesi
- 23 1/4 (590)
- External dimensions, gross width in inchesi
- 20 1/2 (520)
- External dimensions, gross depth in inchesi
- 20 7/8 (530)
- Net weight in lbs
- 8 (3.84)
- Gross weight in lbsi
- 11 (5.14)
