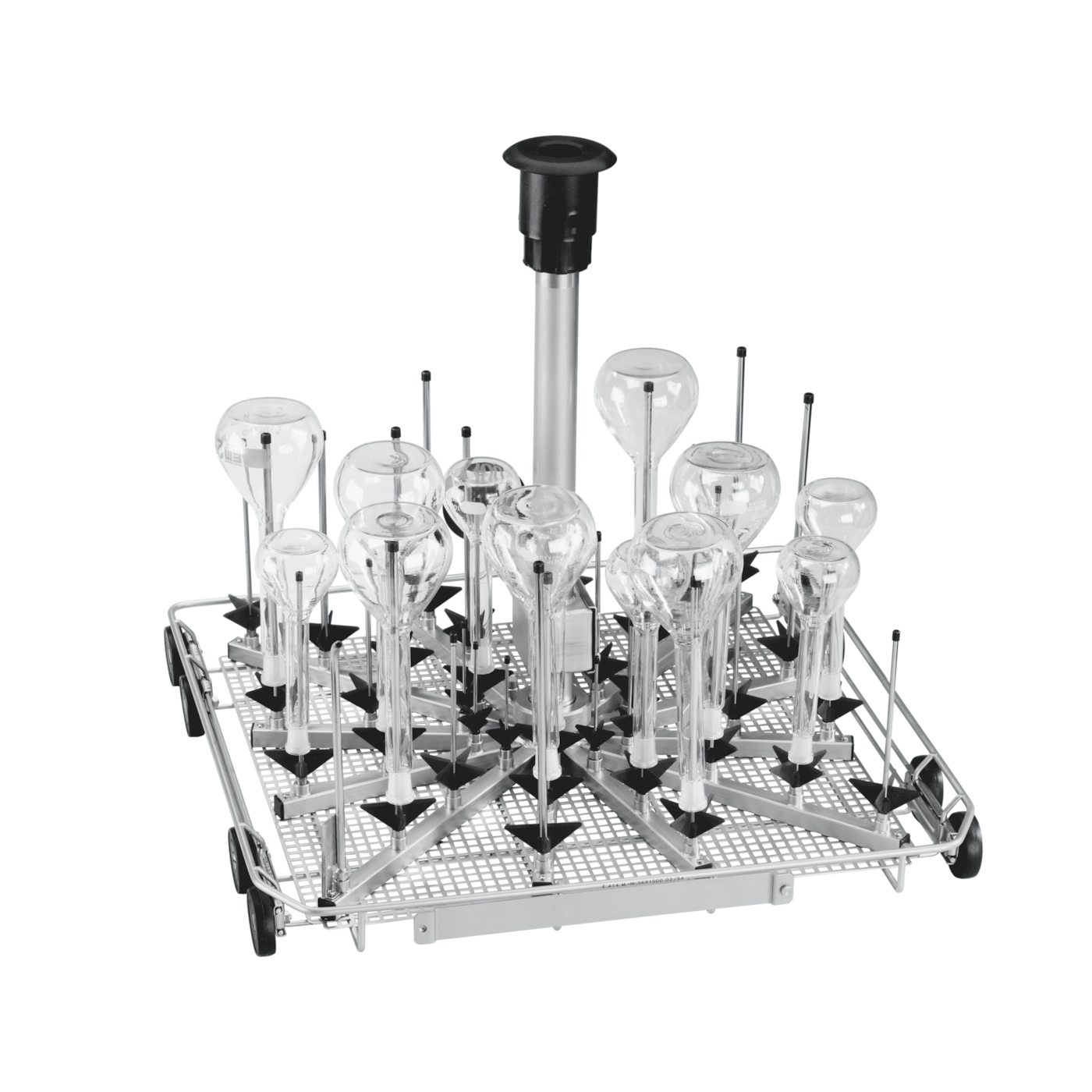

E 414
Mobile unit for the optimum loading of narrow-neck glassware.
- equipped with 37 injector nozzles
- Equipped with connection for hot air drying
- Bracket for ML/2 for mobile unit recognition / spray arm control
Article color
Product details
E 414
EAN 4002511116733 / Article number 69541401D / Material number 03810190
| Washer-disinfectors, laboratory |
- Washer-disinfectors, laboratory
| PG 8535 | |
| PG 8536 |
- PG 8535
- PG 8536
| Mobile unit with connection for hot-air drying | |
| Mobile unit for narrow-neck glassware |
- Mobile unit with connection for hot-air drying
- Mobile unit for narrow-neck glassware
| Reprocessing of laboratory glassware |
- Reprocessing of laboratory glassware
| Material | Stainless steel Plastic |
| Color | Stainless Steel Black |
- Material
- Stainless steelPlastic
- Color
- Stainless SteelBlack
| Narrow-neck glassware [number] | 37 |
- Narrow-neck glassware [number]
- 37
| Number of phases | 0 |
| Voltage in V | 0-0 |
| Frequency in Hz | 0-0 |
| Total rated load in kW | 0-0 |
| Fuse rating in A | 0-0 |
- Number of phases
- 0
- Voltage in V
- 0-0
- Frequency in Hz
- 0-0
- Total rated load in kW
- 0-0
- Fuse rating in A
- 0-0
| External dimensions, net height in inches | 19 13/16 (502) |
| External dimensions, net width in inches | 21 1/8 (535) |
| External dimensions, net depth in inches | 20 3/8 (517) |
| External dimensions, gross height in inchesi | 6 5/16 (160) |
| External dimensions, gross width in inchesi | 21 5/16 (540) |
| External dimensions, gross depth in inchesi | 21 1/2 (545) |
| Net weight in lbs | 13 (6.1) |
| Gross weight in lbsi | 16 (7.1) |
- External dimensions, net height in inches
- 19 13/16 (502)
- External dimensions, net width in inches
- 21 1/8 (535)
- External dimensions, net depth in inches
- 20 3/8 (517)
- External dimensions, gross height in inchesi
- 6 5/16 (160)
- External dimensions, gross width in inchesi
- 21 5/16 (540)
- External dimensions, gross depth in inchesi
- 21 1/2 (545)
- Net weight in lbs
- 13 (6.1)
- Gross weight in lbsi
- 16 (7.1)
| ID 90, injector nozzle, Ø 1/8" (2.5 mm), length 3 9/16" (90 mm) [number] | 4 |
| ID 110, injector nozzle, Ø 1/8" (2.5 mm), length 4 5/16" (110 mm) [number] | 3 |
| ID 140, injector nozzle, Ø 3/16" (4 mm), length 5 1/2" (140 mm) [number] | 5 |
| ID 160, injector nozzle, Ø 3/16" (4 mm), length 6 5/16" (160 mm) [number] | 5 |
| ID 180, injector nozzle, Ø 3/16" (4 mm), length 7 1/16" (180 mm) [number] | 5 |
| ID 200, injector nozzle, Ø 1/4" (6 mm), length 7 7/8" (200 mm) [number] | 5 |
| ID 220, injector nozzle, Ø 1/4" (6 mm), length 8 11/16" (220 mm) [number] | 5 |
| ID 240, injector nozzle, Ø 6 mm, length 9 7/16" (240 mm [number] | 5 |
| Rinse nozzle for powder dispenser [number] | 1 |
- ID 90, injector nozzle, Ø 1/8" (2.5 mm), length 3 9/16" (90 mm) [number]
- 4
- ID 110, injector nozzle, Ø 1/8" (2.5 mm), length 4 5/16" (110 mm) [number]
- 3
- ID 140, injector nozzle, Ø 3/16" (4 mm), length 5 1/2" (140 mm) [number]
- 5
- ID 160, injector nozzle, Ø 3/16" (4 mm), length 6 5/16" (160 mm) [number]
- 5
- ID 180, injector nozzle, Ø 3/16" (4 mm), length 7 1/16" (180 mm) [number]
- 5
- ID 200, injector nozzle, Ø 1/4" (6 mm), length 7 7/8" (200 mm) [number]
- 5
- ID 220, injector nozzle, Ø 1/4" (6 mm), length 8 11/16" (220 mm) [number]
- 5
- ID 240, injector nozzle, Ø 6 mm, length 9 7/16" (240 mm [number]
- 5
- Rinse nozzle for powder dispenser [number]
- 1
