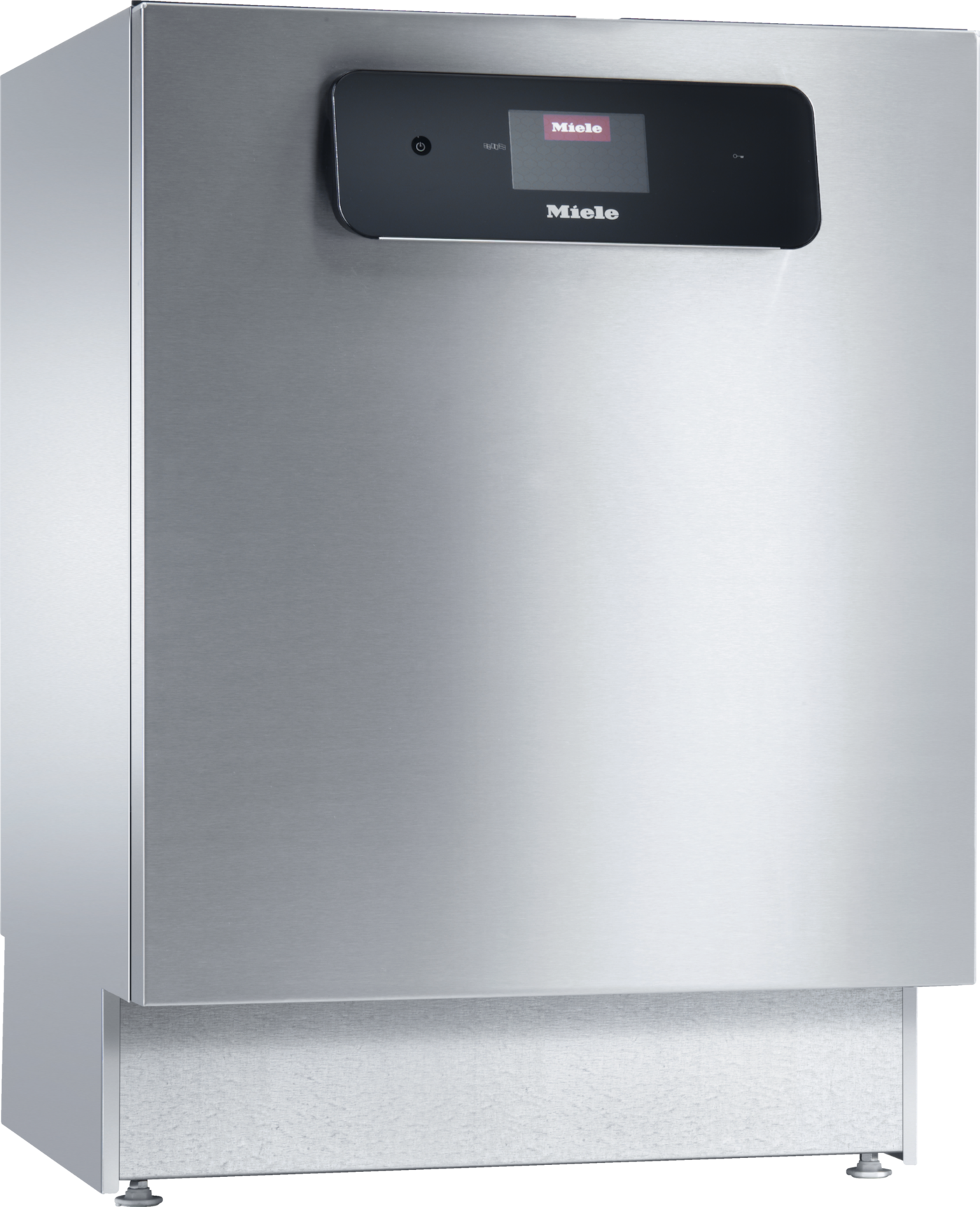

PFD 408 U [240V]
Built-under fresh water dishwasher ADA compliant, NSF/ANSI 3 certified for sanitization. Industrial use only.
- Max. cleaning performance*: 152 plates/h
- First-class results thanks to fresh water system
- Extremely hygienic results – final rinse temperature of 185 (85) °F (°C)
- Safe and easy operation - automatic door opening
- Flexible processing of two wire or plastic baskets per cycle
Voltage:
3 AC 240V 60HZ 20 A
Product benefits
Powerful cleaning performance on two levels High capacity: The most diverse items can be arranged safely on two wash levels. Fresh water system Constantly high cleaning performance and filtration thanks to repeated water changes. High rinse temperature Even the most demanding hygiene requirements are met by using high final rinse temperatures. AutoOpen assisted drying Completely dry: The dishwasher door opens automatically at the end of the program. Very short cycle times Thanks to intelligent professional technology you can benefit from very short programs and perfect results. Adjustable program parameters Adjusting the program parameters as required ensures consistently perfect dishwashing results Quality you can rely on Durability: Miele Professional dishwashers are tested for a long service life. M Touch Flex controls Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display. Hygienic cleanliness down to the very last detail Medication cups and lids can also be cleaned hygienically using inserts that are available separately. Plastic baskets on two levels It is possible to use the plastic baskets on two levels as an option. Practical bottle basket Bottles can be reliably cleaned inside using the APFD 210 basket, which is available to purchase separately. Professional baskets Functional design for superb washing and reliable drying results. Future-proof networking via WiFi Fully informed with a high-performance network connection. Powerful cleaning performance on two levels High capacity: The most diverse items can be arranged safely on two wash levels. Low consumption values Economical and efficient: Miele Professional dishwashers stand out with low consumption values. Efficient hot water connection Connection to a hot water supply shortens the program run times, reducing energy consumption. Connection for detergent dispenser module An optional dispenser module can be connected for convenient and economical use of liquid agents. Highly effective filter system Outstanding dishwashing results and reliability are largely due to the highly effective filter system. Integrated water softener The built-in softener ensures the optimum hardness level of the water for perfect dishwashing results. Fresh water system Constantly high cleaning performance and filtration thanks to repeated water changes. High rinse temperature Even the most demanding hygiene requirements are met by using high final rinse temperatures. Proven hygiene Our dishwashers in the PFD 40x series remove 99.999%* of most bacteria. AutoOpen assisted drying Completely dry: The dishwasher door opens automatically at the end of the program. Very short cycle times Thanks to intelligent professional technology you can benefit from very short programs and perfect results. Adjustable program parameters Adjusting the program parameters as required ensures consistently perfect dishwashing results Aerosol steam condenser Dry dishes and good room climate are the result of exceptional condensation performance. Perfect integration under countertops Perfect appearance thanks to dishwashers that can be built-under. Quality you can rely on Durability: Miele Professional dishwashers are tested for a long service life. Conforms to Machinery Directive Miele commercial machines comply with applicable safety regulations. Reliable water protection* Peace of mind: Your dishwasher is built to prevent water-related mishaps. M Touch Flex controls Use all dishwashing programs and machine functions conveniently with a tap on the clear text touch display. AutoClose A light touch is all it takes: With AutoClose the door closes on its own. Choice of display languages Multi-talented: set various languages on the display so that you fully understand every piece of information. Door salt container Ergonomic convenience: The salt container can be conveniently refilled without removing the lower basket. Delay start and time left display For maximum flexibility, a delay start time of up to 24 hours can be selected. Extensive range of accessories Always perfect ergonomics and efficiency - with practical accessories, from special baskets to dispenser pumps.
Product benefits
- Highlights
- Basket design
- Connectivity
- Efficiency
- Hygiene
- Performance
- Quality
- User convenience
Highlights
Basket design
Connectivity
Efficiency
Hygiene
Performance
Quality
User convenience

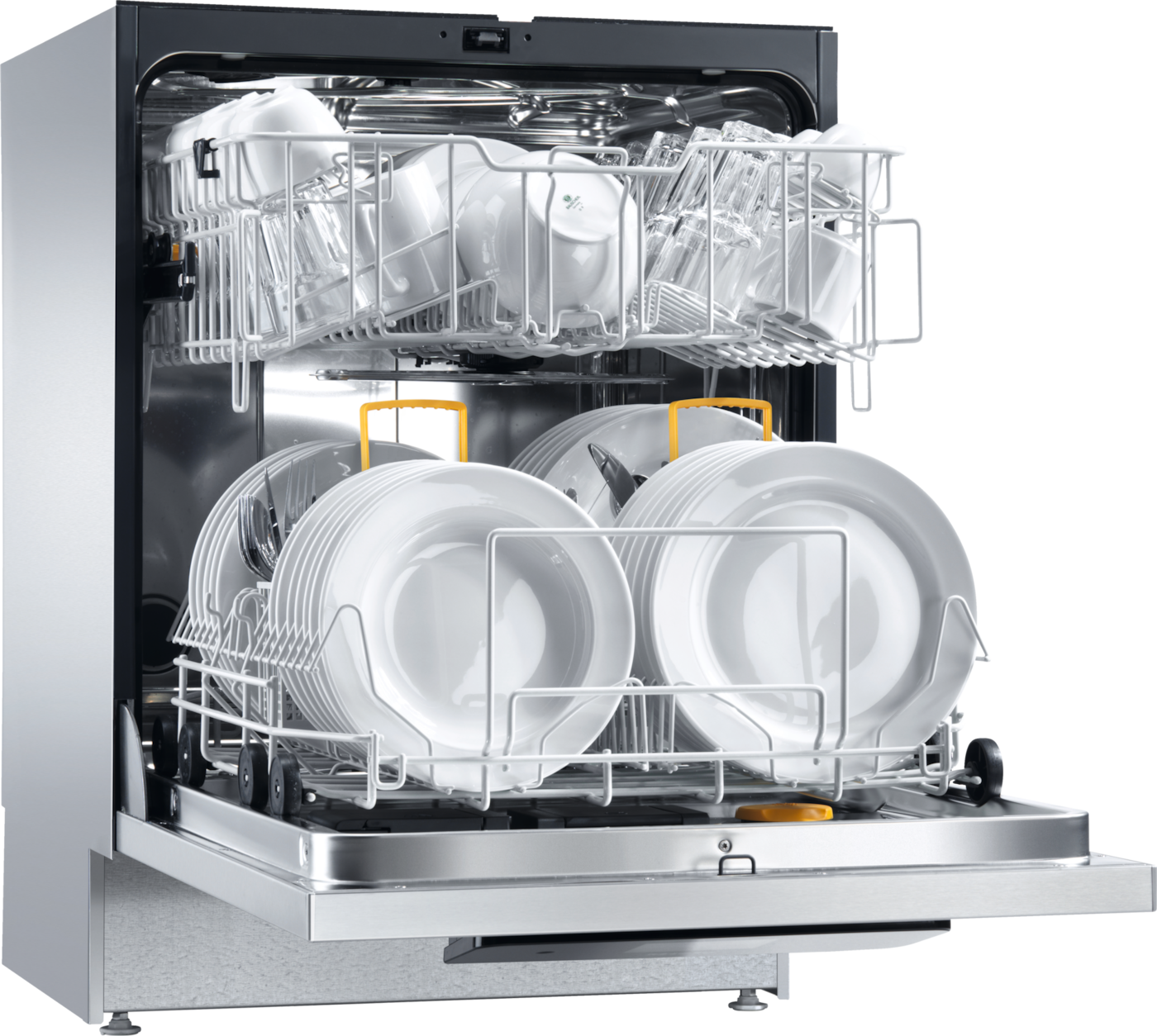

Powerful cleaning performance on two levels
Large wash cabinet
High capacity: The most diverse items can be arranged safely on two wash levels.

Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PFD 408 U [240V]
EAN 4002516577386 / Article number 61040835NAM / Material number 12066610
| Suitable for retirement and care homes | |
| Suitable for small restaurants/bars | |
| Suitable for hospitality industry | |
| Suitable for Bed & Breakfast | |
| Suitable for canteens | |
| Suitable for child care facilities | |
| Suitable for fast food restaurants |
| Control system | M Touch Flexi |
| Max. delay start in h | 24 |
| Countdown indicator | |
| Dishwashing programs [number] | 4 |
| Adjustable temperature holding time | |
| Adjustable final rinse temperature | |
| Program sequence indicator | |
| Choice of display language | |
| Language-neutral operation |
| Electrical connection | 3 AC 240V 60HZ |
| Heater rating in kW | 5.4 |
| Total connected load in kW | 5.8 |
| Fuse rating in A | 20 |
| Length of power cord in ft (m)i | 6 (1.9) |
| NEMA plug: Twist Lock L15-20 |
- Electrical connection
- 3 AC 240V 60HZ
- Heater rating in kW
- 5.4
- Total connected load in kW
- 5.8
- Fuse rating in A
- 20
- Length of power cord in ft (m)i
- 6 (1.9)
- NEMA plug: Twist Lock L15-20
| Electrical connection | 2 AC 240V 60HZ |
| Heater rating in kW | 5.4 |
| Total connected load in kW | 5.8 |
| Fuse rating in A | 30 |
- Electrical connection
- 2 AC 240V 60HZ
- Heater rating in kW
- 5.4
- Total connected load in kW
- 5.8
- Fuse rating in A
- 30
| Cold water [number] | 1 |
| Hot water [number] | 1i |
| Required flow pressure in bar | 0.4-10 |
| Drain hose [DN] | 22 |
| Maximum delivery head for drain pump in inches (cm) | 39 3/8 (100) |
| Integrated water softener | |
| Maximum water hardness in gpg (mmol/l)i | 62.595 (10.7) |
| Water protection system | Waterproof systemi |
| Water consumption per wash cycle in gal (l) | 4.6 (17.5) gll (l) |
| Length of water inlet hose in inches (cm) | 67 (170) |
| Length of water drain hose in inches (cm) | 59 1/8 (150) |
- Cold water [number]
- 1
- Hot water [number]
- 1i
- Required flow pressure in bar
- 0.4-10
- Drain hose [DN]
- 22
- Maximum delivery head for drain pump in inches (cm)
- 39 3/8 (100)
- Integrated water softener
- Maximum water hardness in gpg (mmol/l)i
- 62.595 (10.7)
- Water protection system
- Waterproof systemi
- Water consumption per wash cycle in gal (l)
- 4.6 (17.5) gll (l)
- Length of water inlet hose in inches (cm)
- 67 (170)
- Length of water drain hose in inches (cm)
- 59 1/8 (150)
| External dimensions, net height in inchesi | 32 5/16 (820) |
| Maximum height adjustment in inches (mm) | 60 |
| External dimensions, net width in inches | 23 9/16 (598) |
| External dimensions, net depth in inches | 23 7/16 (595) |
| External dimensions, gross height in inchesi | 36 1/4 (920) |
| External dimensions, gross width in inchesi | 26 7/16 (670) |
| External dimensions, gross depth in inchesi | 29 3/16 (740) |
| Usable space in wash cabinet, width in inches (mm) | 22 1/16 (559) |
| Usable space in wash cabinet, height in inches (mm) | 21 1/8 (536) |
| Usable space in wash cabinet, depth of upper basket in inches (mm) | 18 11/16 (474) |
| Usable space in wash cabinet, depth of lower basket in inches (mm) | 20 3/8 (516) |
| In-feed height above floor in inches (mm) | 8 9/16 (216) |
| Required niche width in mm | 23 5/8 (600) |
| Net weight [kg] | 166 (75) |
| Gross weight in lbs.i | 188 (85) |
| Maximum floor load in N/m²i | 1200 |
- External dimensions, net height in inchesi
- 32 5/16 (820)
- Maximum height adjustment in inches (mm)
- 60
- External dimensions, net width in inches
- 23 9/16 (598)
- External dimensions, net depth in inches
- 23 7/16 (595)
- External dimensions, gross height in inchesi
- 36 1/4 (920)
- External dimensions, gross width in inchesi
- 26 7/16 (670)
- External dimensions, gross depth in inchesi
- 29 3/16 (740)
- Usable space in wash cabinet, width in inches (mm)
- 22 1/16 (559)
- Usable space in wash cabinet, height in inches (mm)
- 21 1/8 (536)
- Usable space in wash cabinet, depth of upper basket in inches (mm)
- 18 11/16 (474)
- Usable space in wash cabinet, depth of lower basket in inches (mm)
- 20 3/8 (516)
- In-feed height above floor in inches (mm)
- 8 9/16 (216)
- Required niche width in mm
- 23 5/8 (600)
- Net weight [kg]
- 166 (75)
- Gross weight in lbs.i
- 188 (85)
- Maximum floor load in N/m²i
- 1200
| Drying | AutoOpen assisted dryingi |
| AutoClose | |
| 1 Combi dispenser/door for powder and liquid media | |
| In-door salt container | |
| Door lock, code-protected if required | |
| Safe mode | |
| Highly effective filter system with filter monitoring | |
| Aerosol steam condenser | |
| Wash cabinet made from high-quality stainless steel | |
| Optical interface | |
| A wide range of accessories (optional) |
- Drying
- AutoOpen assisted dryingi
- AutoClose
- 1 Combi dispenser/door for powder and liquid media
- In-door salt container
- Door lock, code-protected if required
- Safe mode
- Highly effective filter system with filter monitoring
- Aerosol steam condenser
- Wash cabinet made from high-quality stainless steel
- Optical interface
- A wide range of accessories (optional)
| Complies with Machinery Directive 2006/42/EC | |
| Splash protection IPX1 | |
| EMC radio suppressed | |
| DIN 10512 | |
| DIN EN 17735 | |
| ETL | |
| NSF | |
| ADA compliant |
- Complies with Machinery Directive 2006/42/EC
- Splash protection IPX1
- EMC radio suppressed
- DIN 10512
- DIN EN 17735
- ETL
- NSF
- ADA compliant
