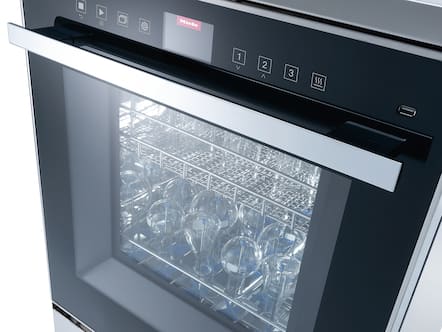

PLW 8505
Laboratory glassware washer with powerful circulation pump for laboratory applications.
- Performance/cycle, e.g., 39 narrow-neck/laboratory glassware w/ injector nozzles
- Simple operation – LCD color display with Touch on Glass
- Dispense process chemicals easily: 2 integrated dispenser pumps
- With DI water connection – final rinse with demineralized water
- Have everything in view thanks to the full-glass door
Voltage:
AC 115V 60HZ 20 A
Product benefits
Full-glass door The full-glass door enables visual observation of the wash cycle. High circulation rate Powerful circulation pumps ensure thorough cleaning. Innovative cleaning program Optimum cleaning results and value retention thanks to innovative cleaning programs for over 50 years. Easy-to-service construction Short service times thanks to maintenance-optimized machine design. Use of stainless steel The wash cabinet, spray arms & filters are made from top-grade stainless steel 1.4404 to ensure the best quality. Full-glass door The full-glass door enables visual observation of the wash cycle. Clear text display Everything at a glance: The display shows everything as clear text in the country-specific language. Shortcut buttons Quick and convenient access to frequently used programs. Can be built under a worktop The machine can be easily integrated under a worktop.
Product benefits
- Highlights
- Cleaning results
- Quality
- User convenience
Highlights
Cleaning results
Quality
User convenience
Full-glass door
Reprocessing with perspective
The full-glass door enables visual observation of the wash cycle.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PLW 8505
EAN 8051160650637 / Article number 62850501USA / Material number 11093230
| Model | Freestanding/undercounter appliance, slim |
| Outer casing | Stainless Steel |
| Full-glass door | |
| Can be built-under | |
| Electric door lock | |
| Buzzer, acoustic signal at end of program | |
| Easy-to-service construction |
| Narrow-neck glassware per cycle [number] | 39 |
- Narrow-neck glassware per cycle [number]
- 39
| Circulation pump, Qmax in gal/min (l/min) | 118.9 (450) |
| Maximum final rinse temperature in °F (in °C) | 199 (93) |
| Usable wash cabinet volume in l | 5.33 (151) |
- Circulation pump, Qmax in gal/min (l/min)
- 118.9 (450)
- Maximum final rinse temperature in °F (in °C)
- 199 (93)
- Usable wash cabinet volume in l
- 5.33 (151)
| Control system | Electronic controls |
| Program selection | Touch on Glass |
| Short cut buttons | |
| Programs [number] | 7 |
| Free program slots [number] | 2 |
| Time-left display | |
| Program-cycle display | |
| Choice of display languages |
| Electrical connection | AC 115V 60HZ |
| Electric heater rating in kW | 1 |
| Total rated load in kW | 1.6 |
| Fuse rating in A | 20 |
| NEMA plug: 5–20 | |
| Length of power cord in ft (m)i | 6 (2) |
- Electrical connection
- AC 115V 60HZ
- Electric heater rating in kW
- 1
- Total rated load in kW
- 1.6
- Fuse rating in A
- 20
- NEMA plug: 5–20
- Length of power cord in ft (m)i
- 6 (2)
| External dimensions, net height in inches | 33 1/2 (850) |
| External dimensions, net width in inches | 23 5/8 (600) |
| External dimensions, net depth in inches | 24 13/16 (630) |
| External dimensions, gross height in inchesi | 39 13/16 (1010) |
| External dimensions, gross width in inchesi | 31 (786) |
| External dimensions, gross depth in inches (mm)i | 29 3/16 (740) |
| Wash cabinet, usable height in inches | 25 5/8 (650) |
| Wash cabinet, usable width in inches | 21 1/8 (535) |
| Wash cabinet, usable depth in inches | 19 1/2 (495) |
| Net weight in lbs | 143.301 (65) |
| Gross weight in lbsi | 171.961 (78) |
| Maximum floor load in N/m²i | 1500 |
- External dimensions, net height in inches
- 33 1/2 (850)
- External dimensions, net width in inches
- 23 5/8 (600)
- External dimensions, net depth in inches
- 24 13/16 (630)
- External dimensions, gross height in inchesi
- 39 13/16 (1010)
- External dimensions, gross width in inchesi
- 31 (786)
- External dimensions, gross depth in inches (mm)i
- 29 3/16 (740)
- Wash cabinet, usable height in inches
- 25 5/8 (650)
- Wash cabinet, usable width in inches
- 21 1/8 (535)
- Wash cabinet, usable depth in inches
- 19 1/2 (495)
- Net weight in lbs
- 143.301 (65)
- Gross weight in lbsi
- 171.961 (78)
- Maximum floor load in N/m²i
- 1500
| Pre-cleaning | |
| Short | |
| Standard | |
| Intensive | |
| Analytic | |
| Microbiology | |
| Plastics |
- Pre-cleaning
- Short
- Standard
- Intensive
- Analytic
- Microbiology
- Plastics
| 1 dispenser pump for liquid cleaning agent | |
| 1 dispenser pump for neutralizing agent | |
| Steam condenser | |
| Pump with high circulation rate | |
| Load carrier – direct coupling | |
| Indirect drying via heating elements | |
| Wash cabinet made of high-quality stainless steel (1.4404/316L) |
| CE | |
| IP safety class according to EN 60529: IP 21 | |
| CSA UL |
- CE
- IP safety class according to EN 60529: IP 21
- CSA UL
