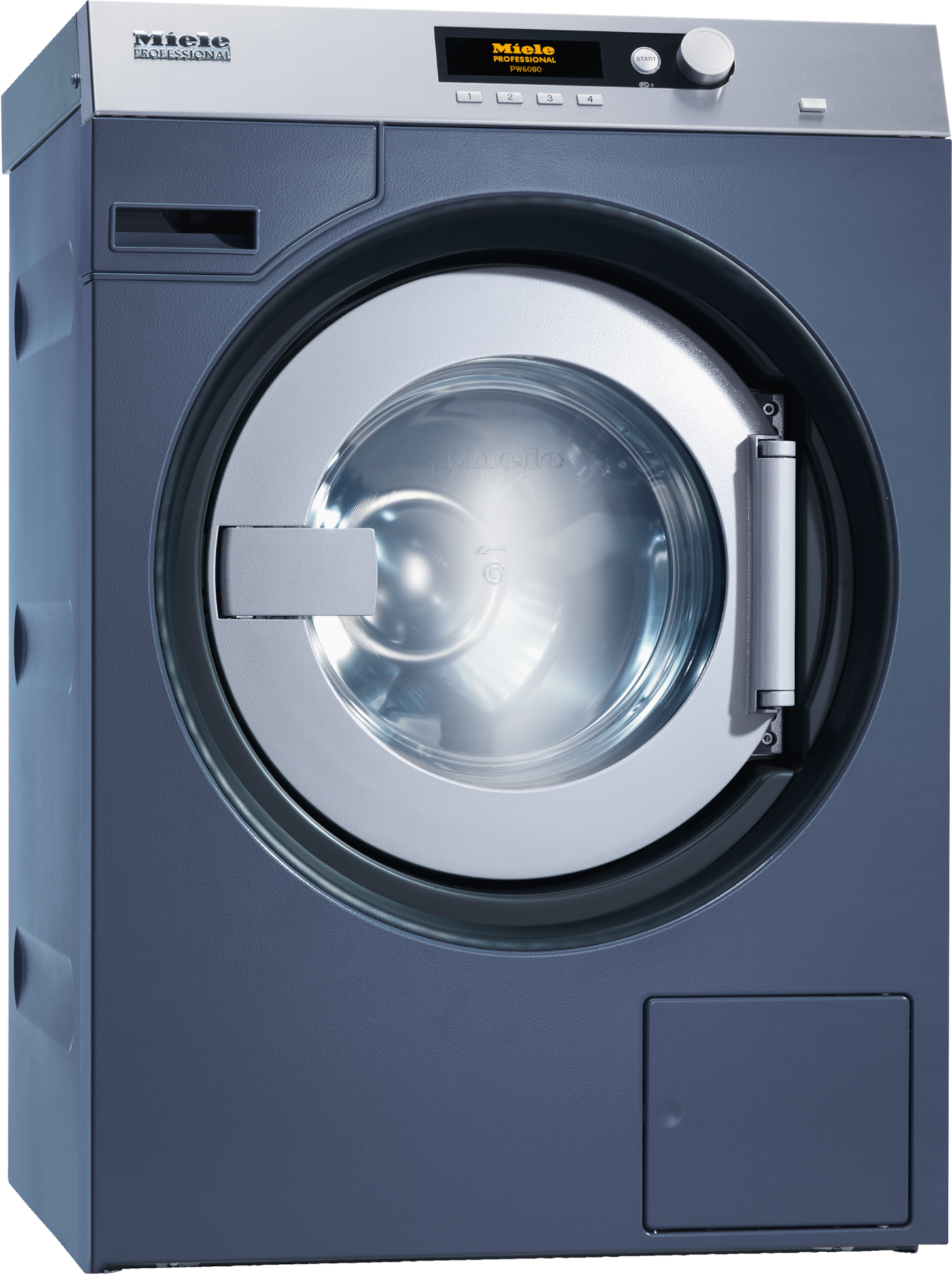

PW 6080 Vario [EL AV]
Washing machine, electric heating with suspended drum unit, shortest program runtime of 53 min and drain valve.
- Drum volume 2.83 (80) ft³ (l), load size 18 (8) lb (kg)
- Large program variety - application-specific wash programs
- Gentle laundry care thanks to the Miele honeycomb drum
- Particularly efficient - low water and energy consumption
- Perfect spinning results – residual moisture 44 %*, g-factor520
Voltage:
2 AC 220-240V 60HZ 30 A
Product benefits
Low consumption values Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values. Honeycomb drum The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water. Short program cycles Premium commercial technology allows you to benefit from the shortest program cycles. Customized user guidance Flexible solutions to suit a wide range of customer needs with regard to professional laundry care Patented liquid dispensing adapter* A dispensing adapter directs the liquid agents straight into the detergent dispenser. Connection of payment system Optimum use in self-service areas is possible thanks to the connection for payment systems. Serial interface RS 232 The serial interface allows communication with technical terminal devices for data exchange. Low consumption values Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values. Large capacity Miele Professional washing machines have a large capacity drum and so can accommodate large loads of laundry. EasyDos Dispensing of liquid detergent can be set individually to suit requirements. Precise automatic load recognition Water and energy consumption are automatically adjusted for the load size. Peak-load cut-out Comprehensive energy management by integrating the appliances into an energy management system. Efficient hot water connection Connection to a hot water supply enables excellent savings in time and energy with minimal effort. Honeycomb drum The honeycomb structure of the Miele honeycomb drum allows garments to glide gently on a thin film of water. WetCare Water instead of chemicals: Delicate textiles are cleaned perfectly using the wet cleaning process. Disinfection rinse A final rinse with a special high temperature/holding time provides additional reassurance with regard to hygiene. High temperature consistency For reliable cleaning results and maximum filtration, the temperature of washing water is monitored constantly. Safe disinfection Disinfection programs ensure reliable levels of hygiene. The hygiene certificate can be found under “Downloads”.* Short program cycles Premium commercial technology allows you to benefit from the shortest program cycles. Interval spinning This process prevents the formation of water pockets in waterproof fabric. Preparation of cloths Cleaning cloths are reprocessed and prepared in the machine in one step. Precisely controlled water consumption The flow meter monitors the volume of water intake precisely for maximum efficiency. Sophisticated asynchronous motor Sophisticated asynchronous frequency-controlled motor facilitates maximum performance and durability. Reliable water drainage The professional drain valve ensures trouble-free drainage even with coarse soiling. Powerful heater elements The washing machines are equipped with powerful heater elements for heating water quickly. Excellent durability The professional technology ensures excellent reliability and durability for daily work routine, Customized user guidance Flexible solutions to suit a wide range of customer needs with regard to professional laundry care Patented liquid dispensing adapter* A dispensing adapter directs the liquid agents straight into the detergent dispenser. User instructions in a variety of languages Avoids operating errors: All instructions and processes can be displayed in a variety of languages. Programmable washing machine controls According to requirements: Programmable controls enable perfect adaptation to suit individual needs. Countdown indicator After the program has started, the display shows the cycle time remaining. Delay start up to 24 hours The program start time can be pre-set up to 24 hours in advance for efficient planning.
Product benefits
- Highlights
- Connectivity
- Efficiency
- Gentle laundry care
- Hygiene
- Performance
- Quality
- User convenience
Highlights
Connectivity
Efficiency
Gentle laundry care
Hygiene
Performance
Quality
User convenience


Exclusive to Miele
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PW 6080 Vario [EL AV]
EAN 4002515127322 / Article number 51608066USA / Material number 09292330
| Design | Front loader |
| Product line | Octoplus |
| Front | Octo Blue |
| Load ratio | 1:10 |
| Load in lbs | 18 (8) |
| Drum volume in cubic feet (l) | 2.83 (80) |
| Door opening [Ø] in in.(mm)i | 14 5/8 (370) |
| Door opening angle in degrees | 180 |
| Door hinging | right |
| Maintenance-free motor with frequency converter | |
| Stainless steel honeycomb drum |
| Suitable for hotels and restaurants | |
| Suitable for senior living facilities | |
| Suitable for facility management | |
| Suitable for dry cleaners | |
| Suitable for commercial laundries | |
| Suitable for small businesses | |
| Suitable for fire brigades and rescue services | |
| Suitable for studs, riding schools and stables | |
| Suitable for hospitals | |
| Suitable for sports clubs | |
| Suitable for beauty salons, spas, and fitness centers | |
| Suitable for doctors' and dentists' practices |
- Suitable for hotels and restaurants
- Suitable for senior living facilities
- Suitable for facility management
- Suitable for dry cleaners
- Suitable for commercial laundries
- Suitable for small businesses
- Suitable for fire brigades and rescue services
- Suitable for studs, riding schools and stables
- Suitable for hospitals
- Suitable for sports clubs
- Suitable for beauty salons, spas, and fitness centers
- Suitable for doctors' and dentists' practices
| Specific water consumption for hot water connection in l/kgi | 8.25 |
| Specific energy consumption for hot water connection in kWh/lbi | 0.06 |
| Program duration in minutes with cold water connectioni | 57 |
| Program duration in minutes with hot water connectioni | 53 |
| Residual moisture with cold rinse in % | 49 |
| Residual moisture with hot rinse in % | 44 |
| Spin speed in rpm | 1300 |
| g factor | 520 |
| Tested operating hoursi | 30000 |
- Specific water consumption for hot water connection in l/kgi
- 8.25
- Specific energy consumption for hot water connection in kWh/lbi
- 0.06
- Program duration in minutes with cold water connectioni
- 57
- Program duration in minutes with hot water connectioni
- 53
- Residual moisture with cold rinse in %
- 49
- Residual moisture with hot rinse in %
- 44
- Spin speed in rpm
- 1300
- g factor
- 520
- Tested operating hoursi
- 30000
| Control system | Profitronic L Vario |
| Programmability | programmable |
| Max. delay start in h | 24i |
| Countdown indicator | |
| Program sequence indicator | |
| Choice of display language |
| Detergent dispenser drawer | 3 compartments |
| Patented liquid dispensing adapter | |
| Maximum number of connections for liquid dispenser pumps [number] | 6i |
| Empty sensor |
| Type of heating | Electric |
| Electrical connection | 2 AC 220-240V 60HZ |
| Heater rating in kW | 4.2-5 |
| Total connected load in kW | 4.4-5.2 |
| Fuse rating in A | 30 |
| NEMA plug: Twist Lock L6-30 |
- Type of heating
- Electric
- Electrical connection
- 2 AC 220-240V 60HZ
- Heater rating in kW
- 4.2-5
- Total connected load in kW
- 4.4-5.2
- Fuse rating in A
- 30
- NEMA plug: Twist Lock L6-30
| Electrical connection | 2 AC 208V 60HZ |
| Heater rating in kW | 3.8 |
| Total connected load in kW | 4 |
| Fuse rating in A | 30 |
- Electrical connection
- 2 AC 208V 60HZ
- Heater rating in kW
- 3.8
- Total connected load in kW
- 4
- Fuse rating in A
- 30
| External dimensions, net height in inches | 40 3/16 (1020) |
| External dimensions, net width in inches | 27 9/16 (700) |
| External dimensions, net depth in inches | 28 5/8 (727) |
| External dimensions, gross height in inchesi | 47 7/8 (1215) |
| External dimensions, gross width in inchesi | 29 15/16 (760) |
| External dimensions, gross depth in inchesi | 32 5/16 (820) |
| Net weight in lbs.(kg) | 309 (140) |
| Gross weight in lbs.i | 327 (148) |
| Maximum floor load in Ni | 2600 |
- External dimensions, net height in inches
- 40 3/16 (1020)
- External dimensions, net width in inches
- 27 9/16 (700)
- External dimensions, net depth in inches
- 28 5/8 (727)
- External dimensions, gross height in inchesi
- 47 7/8 (1215)
- External dimensions, gross width in inchesi
- 29 15/16 (760)
- External dimensions, gross depth in inchesi
- 32 5/16 (820)
- Net weight in lbs.(kg)
- 309 (140)
- Gross weight in lbs.i
- 327 (148)
- Maximum floor load in Ni
- 2600
| Patented cleaning cloth program | |
| Imbalance monitoring | |
| Disinfection rinse | |
| Temperature monitoring | |
| Special heater element | |
| Automatic load control | |
| Volumetric flow meter | |
| Communication slot | |
| Appliance-independent accessories |
| Recycling rate in % | 95 |
- Recycling rate in %
- 95
| Respirator masks [number] | 4-5 |
| Overalls [number] | 1 |
| Over jackets [number] | 1-2 |
| Synthetic duvets [number] | 1 |
| Synthetic pillows [number] | 1-2 |
| Feather duvets [number]i | 1 |
| Feather pillows [number]i | 1-2 |
| Cloths, 22 g/0.8 oz[number] | 182 |
| Cotton mops, 40 cm/15.7 in[number] | 42 |
| Cotton mops, 50 cm/19.7 in[number] | 36 |
| Microfibre mops, 40 cm/15.7 in [number]] | 66 |
| Microfibre mops, 50 cm/19.7 in [number] | 47 |
| Summer horse blankets [number] | 1-2 |
- Respirator masks [number]
- 4-5
- Overalls [number]
- 1
- Over jackets [number]
- 1-2
- Synthetic duvets [number]
- 1
- Synthetic pillows [number]
- 1-2
- Feather duvets [number]i
- 1
- Feather pillows [number]i
- 1-2
- Cloths, 22 g/0.8 oz[number]
- 182
- Cotton mops, 40 cm/15.7 in[number]
- 42
- Cotton mops, 50 cm/19.7 in[number]
- 36
- Microfibre mops, 40 cm/15.7 in [number]]
- 66
- Microfibre mops, 50 cm/19.7 in [number]
- 47
- Summer horse blankets [number]
- 1-2
| Splash protection IPX4 | |
| Complies with Machinery Directive 2006/42/EC |
- Splash protection IPX4
- Complies with Machinery Directive 2006/42/EC
