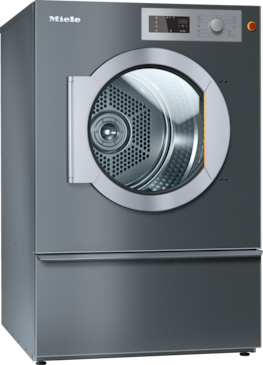

PDR 514 ROP [EL SOM]
Vented dryer, electrically heated with M Select ROP residual moisture control, for marine applications.
- Drum volume 250 l, load size 14 kg
- Unique, gentle fabric care – honeycomb drum
- Greatest energy efficiency thanks to Air Recycling
- Precision drying of all fabrics – PerfectDry
- Connected for the future using LAN and WiFi
Voltage:
3 AC 400V 50/60HZ 25 A
Product benefits
Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Air recycling Low energy consumption due to recycling of pre-heated process air. Honeycomb drum Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. Short programme cycles Premium commercial technology allows you to benefit from the shortest programme cycles. PerfectDry system On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dried garments. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Easy to understand symbols The control panel is characterised by logically arranged and easy to understand symbols. M Select control system Fast, direct selection of the drying programme and effortless access to additional functions and settings. Connection of payment system Optimum use in self-service areas is possible thanks to the connection for payment systems. Connector Box The Connector Box facilitates connections to external systems, e.g. payment, dispensing and peak-load systems. LAN interface The LAN interface enables secure communication in the local network via a LAN cable. WLAN interface The WLAN interface enables wireless communication in the local network. Low consumption values Economical and efficient: laundry machines from Miele Professional boast exceptionally low consumption values. Air recycling Low energy consumption due to recycling of pre-heated process air. Large capacity The large capacity drum ensures perfect drying results even with large loads. Honeycomb drum Less creasing, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. Perfect anti-crease action The laundry is tumbled regularly after the end of the programme to protect it from creasing. SoftLift drum ribs ensure gentle fabric care The SoftLift drum ribs allow laundry to be dried gently and evenly. Short programme cycles Premium commercial technology allows you to benefit from the shortest programme cycles. PerfectDry system On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dried garments. Axial airflow For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow. Intelligent tumble dryers Gentle and uniform drying thanks to intelligent technology. Excellent durability Professional technology ensures excellent reliability and durability for daily work routine. Easy to understand symbols The control panel is characterised by logically arranged and easy to understand symbols. M Select control system Fast, direct selection of the drying programme and effortless access to additional functions and settings. Large fluff filter The very large filter surface is particularly easy to clean. Countdown indicator After the programme has started, the display shows the cycle time remaining. Delay start up to 24 hours The programme start time can be pre-set up to 24 hours in advance for efficient planning.
Product benefits
- Highlights
- Connectivity
- Efficiency
- Gentle laundry care
- Performance
- Quality
- User convenience
Highlights
Connectivity
Efficiency
Gentle laundry care
Performance
Quality
User convenience


We reserve the right to make technical changes. We assume no liability for the accuracy of the information provided. Images are only examples and used for explanation purposes.
Product details

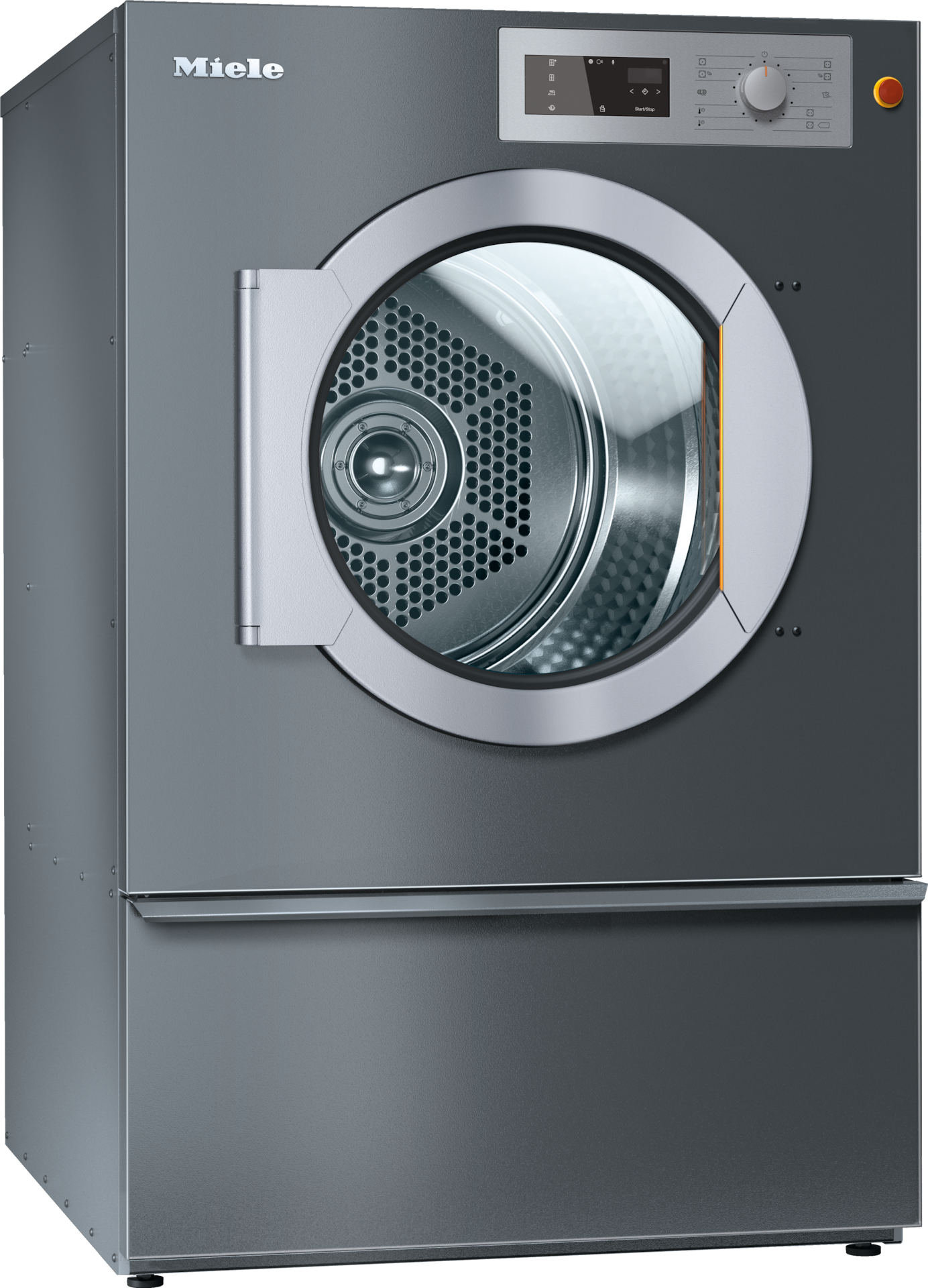

PDR 514 ROP [EL SOM]
EAN 4002516456827 / Article number 52514011SOM / Material number 11843380
| Construction type | Front loader |
| Series | Benchmark |
| Range | Performance |
| Front | Iron grey |
| Fascia color | Stainless steel |
| Load in kg | 14 |
| Load size with a load ratio of 1:25 | 10 |
| Load size with a load ratio of 1:18 | 14 |
| Load ratio | 1:18 |
| Drum volume in l | 250 |
| Drying system | Exhaust air |
| Door opening [Ø] in mmi | 520 |
| Door opening angle in degrees | 180 |
| Door hinge | left |
| Convertible door hinging | |
| Stainless steel honeycomb drum |
- Construction type
- Front loader
- Series
- Benchmark
- Range
- Performance
- Front
- Iron grey
- Fascia color
- Stainless steel
- Load in kg
- 14
- Load size with a load ratio of 1:25
- 10
- Load size with a load ratio of 1:18
- 14
- Load ratio
- 1:18
- Drum volume in l
- 250
- Drying system
- Exhaust air
- Door opening [Ø] in mmi
- 520
- Door opening angle in degrees
- 180
- Door hinge
- left
- Convertible door hinging
- Stainless steel honeycomb drum
| Control system | M Select Benchmark |
| Programmability | Setting of defined parameters |
| User interface | Residual moisture controlled |
| Max. delay start in h | 24i |
| Time left display | |
| Control panel with easy-to-understand symbols |
| Heating type | Electric |
| Electrical connection | 3 AC 400V 50/60HZ |
| Electric heater rating in kW | 13.5 |
| Total connected load in kW | 14.1 |
| Fuse rating in A | 25 |
- Heating type
- Electric
- Electrical connection
- 3 AC 400V 50/60HZ
- Electric heater rating in kW
- 13.5
- Total connected load in kW
- 14.1
- Fuse rating in A
- 25
| Electrical connection | 3 AC 400V 60 HZ |
| Heater rating in kW | 13.5 |
| Total connected load in kW | 14.1 |
| Fuse rating in A | 25 |
- Electrical connection
- 3 AC 400V 60 HZ
- Heater rating in kW
- 13.5
- Total connected load in kW
- 14.1
- Fuse rating in A
- 25
| External dimensions, height in mm | 1400 |
| External dimensions, width in mm | 906 |
| External dimensions, depth in mm | 852 |
| External dimensions, gross height in mmi | 1526 |
| External dimensions, gross width in mmi | 1090 |
| External dimensions, gross depth in mmi | 938 |
| Net weight in kg | 160.4 |
| Gross weight in kgi | 172 |
| Maximum floor load in Ni | 2024 |
- External dimensions, height in mm
- 1400
- External dimensions, width in mm
- 906
- External dimensions, depth in mm
- 852
- External dimensions, gross height in mmi
- 1526
- External dimensions, gross width in mmi
- 1090
- External dimensions, gross depth in mmi
- 938
- Net weight in kg
- 160.4
- Gross weight in kgi
- 172
- Maximum floor load in Ni
- 2024
| Intelligent drum reversal | |
| Axial airflow | |
| Large-surface fluff filter | |
| PerfectDry | |
| SoftLift drum ribs | |
| AirRecycling | |
| Communication slot | |
| Emergency switch-off | |
| Machine-independent accessories |
| Payment system (optional) | |
| Optical interface for service access | |
| Peak-load negotiation / energy management (optional) | |
| WiFi | |
| Connector Box | |
| LAN module (optional) |
| CE | |
| VDE | |
| VDE-EMC | |
| Splash-proof safety rating IPX4 | |
| WEEE | |
| UKCA | |
| EAC | |
| Complies with Machinery Directive 2006/42/EC |
- CE
- VDE
- VDE-EMC
- Splash-proof safety rating IPX4
- WEEE
- UKCA
- EAC
- Complies with Machinery Directive 2006/42/EC
